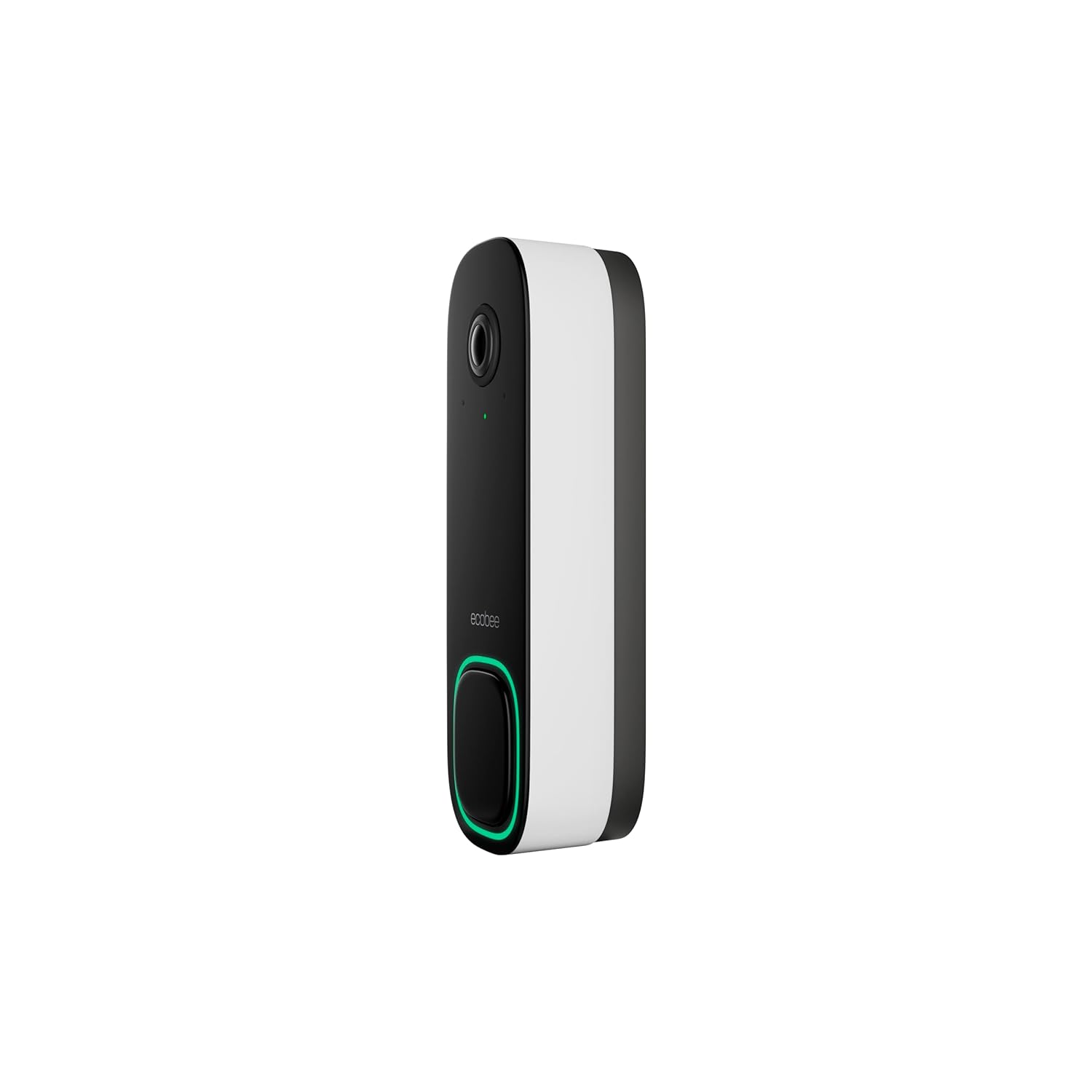

Ecobee Smart Doorbell Video Camera Wired-Black

It is a wired smart video doorbell with 1080p HDR video, a wide 187° diagonal field of view, night vision, smart detection and two-way talk.

No. The doorbell camera itself does not contain a battery. It requires wired power from a compatible doorbell transformer.

It requires a 16–24 VAC doorbell transformer rated at 10 VA minimum and 60 Hz.

Yes. It is designed to use existing wired doorbell systems, provided the wiring and transformer meet the required specifications.

ecobee states that the Smart Doorbell Camera works with most mechanical and digital chime boxes.

It records in 1080p Full HD with HDR and up to 30 frames per second.

The camera provides a 187° diagonal field of view, with 175° vertical and 115° horizontal coverage.

The 175° vertical view is designed to show more of the area directly around the entrance, including packages placed close to the door.

Yes. It uses two high-powered wide-angle infrared LEDs with an IR Cut Filter and can provide night viewing up to approximately 30 feet.

Yes. HDR is supported with the 1080p video system.

Yes. The doorbell has far-field two-way talk with noise cancellation and built-in microphone and speaker.

Yes. Visitors can be spoken to remotely through the ecobee app.

Yes. Smart Detection uses advanced radar verification and computer vision to improve person and motion detection.

Yes. Package Detection is supported, but ecobee states that this feature requires an ecobee Smart Security subscription.

Yes. Activity Zones allow you to select the area where the camera should focus motion detection.

Supported Smart Security features can automatically record events as video clips and store them for up to 30 days.

Yes. The camera supports 24/7 live viewing through supported ecobee services and the ecobee app.

Yes. It supports dual-band 2.4 GHz and 5 GHz Wi-Fi using 802.11 a/b/g/n/ac standards.

ecobee recommends at least 2 Mbps upload bandwidth per camera for optimal 1080p video quality.

Yes. Apple HomeKit is listed as a supported integration.

Yes. Amazon Alexa is listed as a supported integration.

Yes. ecobee states that the camera can connect with the ecobee home ecosystem, including live viewing from the Smart Thermostat Premium.

Speaker-enabled compatible ecobee devices can chime when the doorbell is pressed.

It has an IP65 weather-resistance rating and is designed for outdoor use.

The specified operating temperature is -25°C to 45°C, or -13°F to 113°F.

It is designed to operate up to 45°C. For hot outdoor locations, choose a practical mounting position and avoid unnecessary direct heat exposure where possible.

The doorbell measures 136 mm high, 47 mm wide and 29 mm deep.

The front is black, while the sides and back are white. The mounting plate is black.

Yes. A 15-degree wedge is included to adjust the camera's viewing angle.

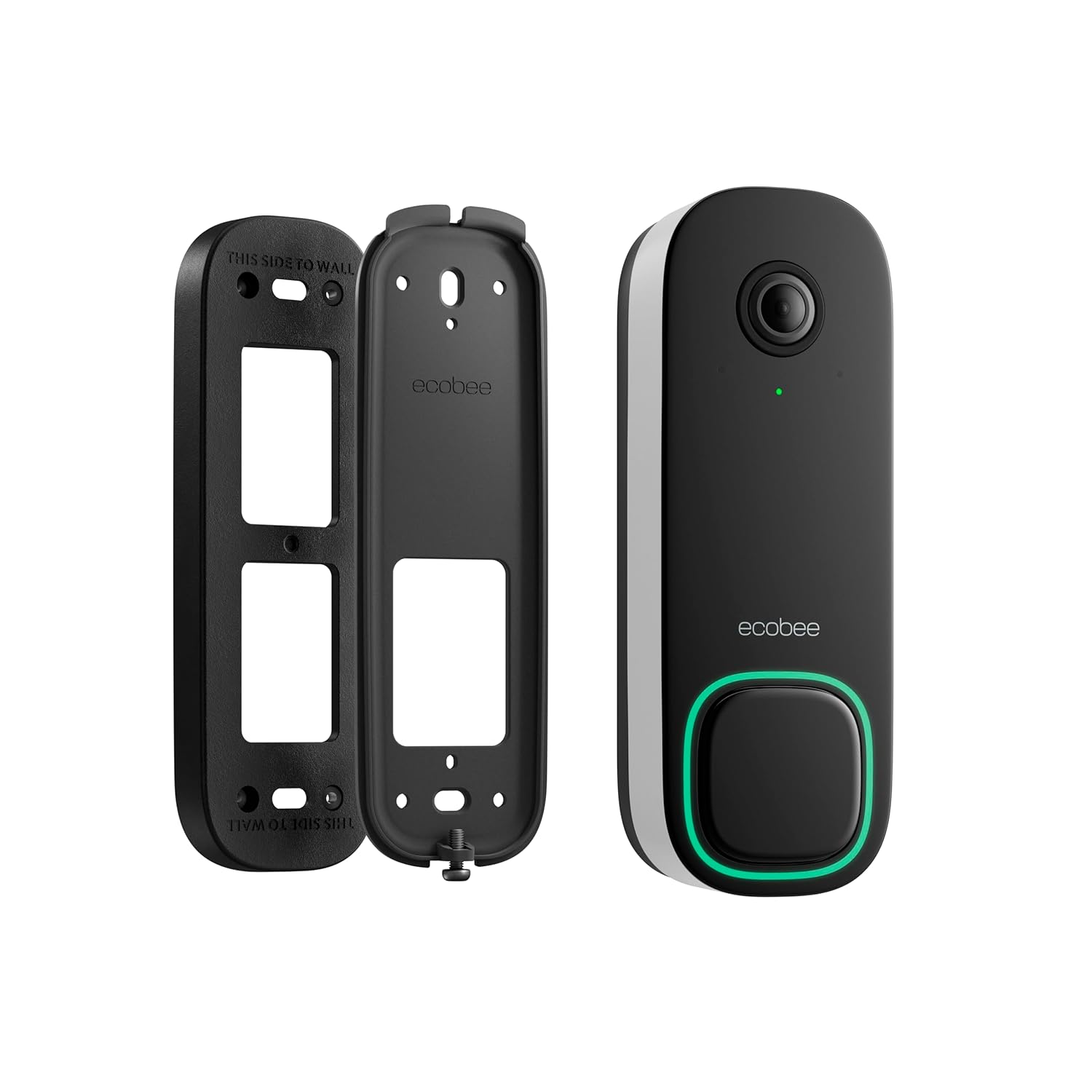

The package includes the ecobee Smart Doorbell Camera, backplate, pre-attached security screw, 15-degree wedge, chime adapter, wire extenders, wire connectors, long screws, wall anchors and short screws.

Installation may require needle-nose pliers, Phillips screwdriver, drill and suitable drill bits. A pencil, flat-head screwdriver, wire cutter, step ladder, level and safety glasses may also be useful.

Basic camera functionality is available, while certain advanced features such as Package Detection, Alert Snapshots and extended security services require ecobee Smart Security.

Yes. ecobee lists end-to-end video encryption and TLS/SSL with 128-bit AES security.

Yes. ecobee supports two-factor authentication for account security.

Yes. ecobee states that the Smart Doorbell Camera receives automatic software upgrades, including access to supported new features.

The ecobee Smart Doorbell Camera comes with a 3-year limited warranty.

The camera is designed to work with existing wired doorbell systems, but installation involves low-voltage wiring. Professional installation is recommended if you are not comfortable working with doorbell wiring or transformer connections.

Yes, provided the installation meets the electrical and environmental requirements. The camera is rated for outdoor use from -25°C to 45°C and requires compatible 16–24 VAC wiring.
