Smart Curtain Motor Kit

The Smart Curtain Motor Kit is an Orvibo motorized curtain system designed to automate curtain opening and closing through smart-home controls, compatible apps, RF control and Zigbee integration.

The Orvibo smart curtain motor specification identifies the motor as model W40CZ.

Yes. The W40CZ supports Zigbee 2.4GHz communication for compatible smart-home integration.

Yes. A compatible Zigbee hub or gateway is required when connecting the motor to a Zigbee smart-home network.

Yes. The published specification lists RF communication at 433.92MHz for compatible control equipment.

The W40CZ specification lists an AC 100-240V rated voltage.

The published specification lists a rated power supply of 72W.

The published motor torque is 1Nm.

The published operating speed is 80RPM.

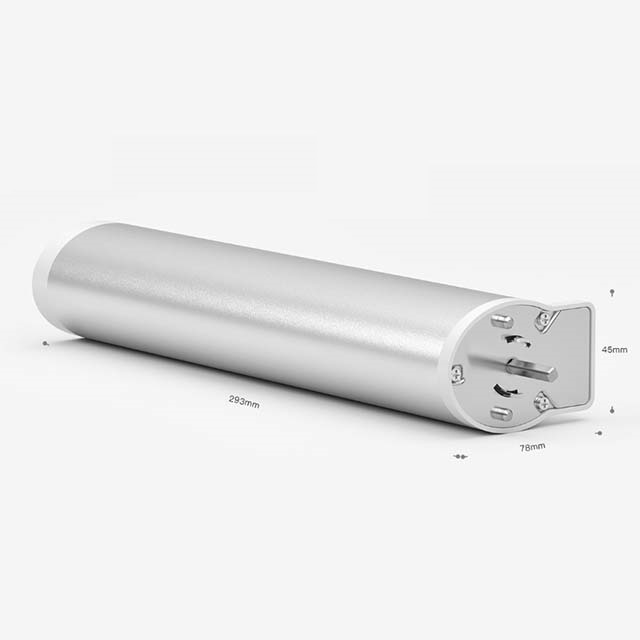

The W40CZ motor is approximately 293 × 78 × 45mm.

The load capacity depends on the track configuration and length. Published figures range from approximately 20kg to 50kg across the specified straight and L-track configurations.

The published load table specifies up to approximately 50kg for a 4m straight track configuration.

The published reference capacity is approximately 40kg for a 6m straight track configuration.

The published reference capacity is approximately 30kg for an 8m straight track configuration.

Yes. The published specifications include L-track configurations with an R400mm radius, subject to the applicable track length and load limits.

Yes. Smartphone control is supported through a compatible smart-home application and Zigbee gateway configuration.

Yes. Scheduled curtain opening can be configured through compatible smart-home automation systems.

Yes. Compatible smart-home systems can be configured to close the curtains at selected times.

Alexa control can be supported through a compatible smart-home ecosystem, gateway and integration.

Google Assistant control can be supported through a compatible smart-home ecosystem, gateway and integration.

Yes. When connected to a compatible smart-home system, the curtain motor can be included in automation scenes and schedules.

Yes. It is suitable for villa curtain automation when the motor, track, curtain weight and electrical installation are correctly matched.

Yes. It can be used in apartments where a suitable curtain track, mounting arrangement and AC power connection are available.

Yes. The motorized system can be used for office curtains and can be integrated into compatible automation schedules and scenes.

Yes. The system can be used for suitable hotel and hospitality curtain automation installations with compatible infrastructure.

Yes. The W40CZ specification lists AC 100-240V power, so the mains-powered configuration requires an appropriate electrical connection.

The motor is designed for smooth, low-disturbance operation suitable for residential and commercial environments. Actual noise depends on the track and curtain installation.

Manual interaction may be supported depending on the installed curtain track and motor configuration. The exact manual-operation behavior should be confirmed for the selected installation.

Installation involves preparing the curtain track, securing the track, mounting the motor, connecting the appropriate AC supply, checking curtain movement, configuring limits and pairing the motor with the compatible smart-home system.

Professional installation is recommended, particularly because the W40CZ uses AC mains power and proper track alignment and load matching are important for reliable operation.

Check the window dimensions, curtain weight, track length, track type, motor compatibility, mounting position, electrical supply and Zigbee coverage before installation.

Keep the track clean, remove obstructions, inspect moving components and connections periodically, and keep the motor and electrical components protected from unsuitable conditions.

It can be used for larger curtains when the track length, curtain weight and configuration remain within the published load capacity for the selected setup.

Yes. The motorized curtain system is suitable for Dubai villas, apartments, offices and hotels when installed with an appropriate track, AC power connection and compatible smart-home gateway.
