0 Reviews

ZigBee RGB Relay

350.00 499.00 29.86

Hurry up! only 5 products left in stock!

Availability:
In stock
Quantity:
Buy now
Wishlist
Delivery & return Ask a question
SKU:
SG-1110011

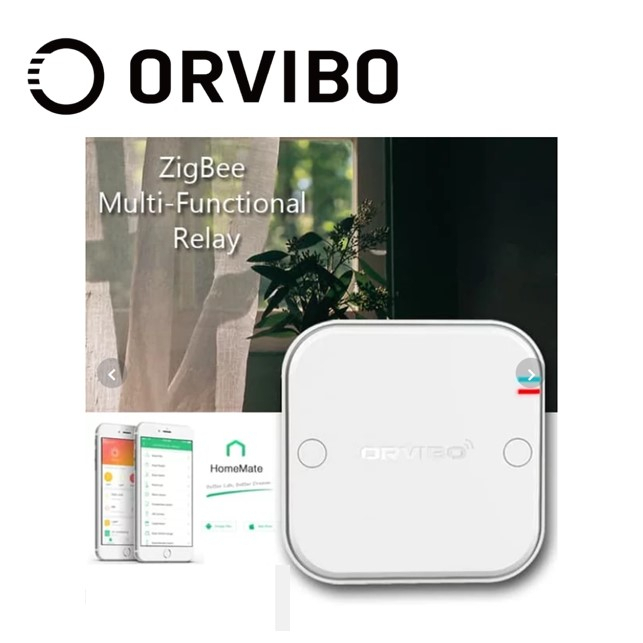

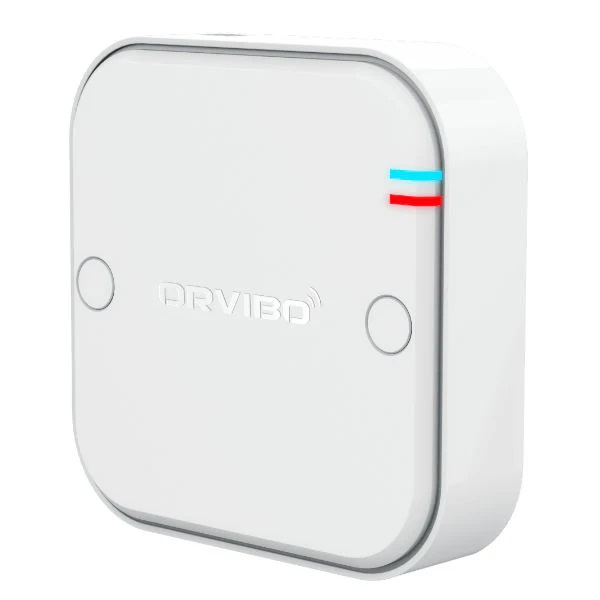

ZigBee RGB Relay in Dubai



Turn​‍​‌‍​‍‌​‍​‌‍​‍‌ your lights into an eye-catching display with ZigBee RGB Relay from SG Automations Dubai.

The small device links your RGB lighting to the smart home setup and thus, one can easily manage the color temperature, dimming, and effects by the help of a mobile app or through a voice assistant.

Working with Google Home, Alexa, and ZigBee hubs, it allows automation, scheduling, and remote control, which makes managing the atmosphere easy and convenient.

This smart RGB relay is just the right lighting solution for residential, hotel, and commercial spaces to experience comfortable, energy-saving, and personalized ​‍​‌‍​‍‌​‍​‌‍​‍‌lighting.



Why Choose SG Automations Dubai



We​‍​‌‍​‍‌​‍​‌‍​‍‌ at SG Automations are equipped with the skills to implement smart lighting and automation systems all over Dubai and the UAE.

To make a long story short, easy installation, trustworthiness, and fashion trend smart living are the words with which our ZigBee relays and controllers can be ​‍​‌‍​‍‌​‍​‌‍​‍‌characterized.

Product Type normal
Sku SG-1110011
Product Code SGP001011
Category Id 31
Alternate Product Name ZigBee RGB Relay
Brand Orvibo
Status 1

1Basic Product Information

AttributeDetails
Product NameZigBee RGB Relay
Product TypeSmart ZigBee RGB lighting controller / relay
Model NumberRL804CZB
BrandORVIBO
Primary FunctionSmart control of RGB strip lights and RGB panel lights
Control MethodHomeMate APP on compatible smartphones
Wireless TechnologyZigBee
ProtocolZigBee HA
NetworkingZigBee automatic networking
Home Automation UseSmart lighting, RGB lighting, scenes and automated lighting control
InstallationIndoor / dry-location installation

2RGB Lighting Control

FeatureSpecification
Supported LightingRGB strip lights and RGB panel lights
Light TypeConstant-voltage RGB lighting using compatible V+ signal control
Color SelectionSupported
Number of ColorsUp to 16 million colors
Brightness ControlSupported
Color Temperature2700K to 6500K
Color Temperature ControlSupported
RGB ControlRed, green and blue channel control
Panel Light ControlSupported for compatible RGB panel lights
Strip Light ControlSupported for compatible RGB strip lights
Scene CreationSupported
Power-Off MemorySupported

3Power & Electrical Specifications

AttributeSpecification
Input PowerDC 12V or DC 24V
Supported Voltage12V DC and 24V DC
Maximum Load Current20A
Static Power Consumption<0.1W
Power Supply RequirementUse a DC power supply matching the connected lighting load voltage
Load CompatibilityCompatible RGB lighting must match the relay's supported voltage
Voltage CompatibilityDo not connect loads exceeding the specified voltage or current ratings
Power note: The connected LED lighting and power supply must be compatible with the relay. Confirm the load's rated voltage before wiring and installation.

4ZigBee Connectivity & Networking

AttributeDetails
Wireless TechnologyZigBee
ProtocolZigBee HA
Working Frequency2.4GHz
Networking ModeZigBee automatic networking
PairingAutomatic ZigBee networking without conventional manual code pairing
Wireless Transmit Power20dBm
Wireless Receiving Sensitivity≥ -90dBm
Mesh NetworkingSupported
Network RangeDesigned to extend communication through ZigBee mesh networking; manufacturer lists distance as no fixed limit
Network ReliabilityMesh networking can relay data through compatible intermediate ZigBee devices
EncryptionAES-128

5Smart App Control

FunctionDetails
Mobile AppHomeMate APP
Smartphone ControlColor and brightness can be controlled through the compatible app
Color ControlSelect and adjust supported RGB colors
Brightness ControlAdjust compatible lighting brightness
Color TemperatureAdjustable from 2700K to 6500K for supported lighting
Scene ControlUsers can create lighting scenes
Remote ControlAvailable through the compatible smart-home ecosystem and network setup

6Smart Automation & Scenes

FeatureBenefit / Function
Scene CreationCreate predefined lighting scenes for different activities or moods.
RGB ScenesSave preferred RGB lighting colors and settings.
Brightness ScenesUse predefined brightness levels for different situations.
Color Temperature ScenesCreate preferred warm or cool lighting settings within the supported range.
Smart Home AutomationCan be integrated into compatible ZigBee smart-home automation scenarios.
Mesh AutomationZigBee mesh networking supports communication with compatible devices within the network.
Power-Off MemoryRetains relevant lighting state information so the device does not need to access the ZigBee network again after a power interruption.

7Physical Specifications

AttributeSpecification
Dimensions70 × 70 × 23mm
Length70mm
Width70mm
Height23mm
Product DesignCompact ZigBee RGB lighting control box
MountingFixed installation using supplied screws
Installation EnvironmentDry indoor location

8Environmental Specifications

AttributeSpecification
Working Temperature-20°C to 60°C
Working Humidity≤80%
Installation EnvironmentDry locations
Moisture ExposureNot suitable for moist environments
Bathroom InstallationNot recommended
Outdoor InstallationNot intended for exposed outdoor installation
Environment note: The manufacturer's documentation specifies dry-place installation. Do not install the relay in damp locations such as bathrooms or other areas exposed to moisture.

9Security & Data Protection

FeatureDetails
Wireless EncryptionAES-128 encryption
ZigBee SecurityEncrypted ZigBee communication
Network ProtocolZigBee HA
Automatic NetworkingSupported
Mesh NetworkSupported for compatible ZigBee devices

10Compatibility & Supported Devices

Device / SystemCompatibility
RGB Strip LightsSupported when compatible with the relay's voltage and V+ signal requirements
RGB Panel LightsSupported when compatible with the relay's voltage and control requirements
DC12V LightingSupported
DC24V LightingSupported
HomeMate APPSupported
ZigBee NetworkSupported
Compatible ZigBee HubRequired for ZigBee smart-home network operation
V+ Signal LightingDesigned for compatible V+ signal strip and panel lights
Compatibility note: The relay is designed for compatible RGB strip and panel lighting. Always verify the LED light's voltage, wiring and control type before installation.

11Installation & Wiring

ConnectionInstallation Information
Power InputConnect the DC12V or DC24V positive supply to the appropriate power input terminal.
Power NegativeConnect the DC12V or DC24V negative supply to the appropriate power input terminal.
RGB Light V+Connect the compatible lighting positive line according to the manufacturer's wiring diagram.
Red ChannelConnect the compatible RGB red control line to the designated terminal.
Green ChannelConnect the compatible RGB green control line to the designated terminal.
Blue ChannelConnect the compatible RGB blue control line to the designated terminal.
Working ModeSelect the appropriate operating mode according to the connected lighting configuration where applicable.
MountingSecure the relay using the supplied screws.
Final TestRestore power and verify lighting, ZigBee connectivity and app control.
Installation safety: Switch off the electrical power before wiring. Follow the product wiring diagram and confirm every wire definition before connecting the relay.

12Setup Instructions

  1. Switch off power:Disconnect electrical power before beginning installation or wiring.
  2. Confirm the lighting voltage:Check whether the connected RGB lighting uses DC12V or DC24V.
  3. Check compatibility:Confirm that the RGB strip or panel light uses a compatible V+ control configuration.
  4. Connect the power supply:Wire the appropriate DC power input according to the manufacturer's wiring instructions.
  5. Connect the RGB lighting:Connect the V+, red, green and blue lines to their designated terminals.
  6. Secure the relay:Install the relay in a suitable dry location using the supplied screws.
  7. Restore power:After checking all wiring, switch the power supply back on.
  8. Check the power indicator:Confirm that the relay powers on correctly.
  9. Connect to ZigBee:Allow the relay to search for and join the compatible ZigBee network.
  10. Open HomeMate:Use the compatible HomeMate APP to manage the device after successful networking.
  11. Test RGB control:Check color selection, brightness and color-temperature functions.
  12. Create scenes:Configure preferred lighting scenes for daily use.
  13. Test power recovery:Verify the desired lighting behavior following a power interruption.

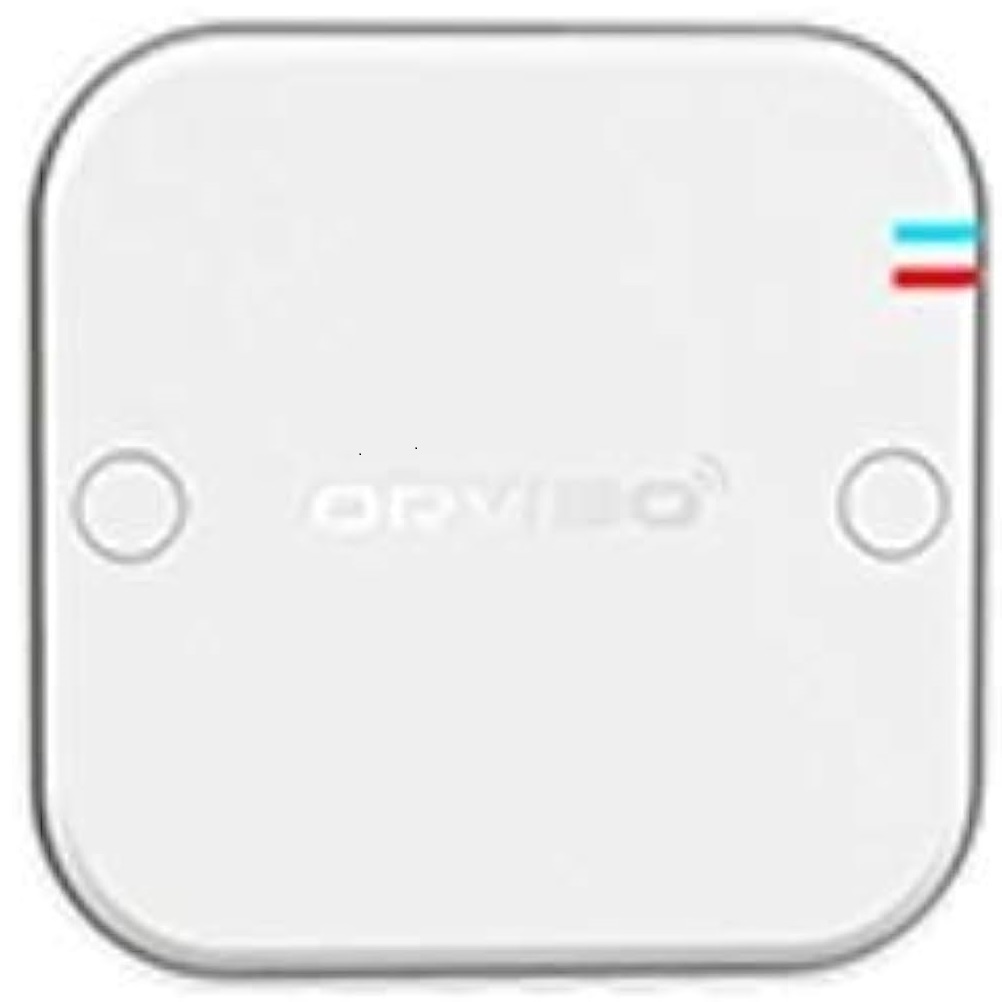

13Indicators & Network Status

Indicator / StatusMeaning
Red Power IndicatorIndicates that the RGB relay is powered.
Blue Signal IndicatorIndicates ZigBee network and pairing status.
Rapid Blue FlashingIndicates that the RGB relay has not joined the ZigBee network.
Blue Flashing Approximately Once Per SecondIndicates that the relay is searching for the ZigBee network.
Network JoinedThe device can be managed through the compatible ZigBee smart-home network after successful pairing.

14Power-Off Memory

FeatureDetails
Power-Off MemorySupported
FunctionRetains relevant lighting state information during power interruption.
Network ReconnectionThe manufacturer states that the relay does not need to access the ZigBee network again simply because power has been switched off.
BenefitHelps provide consistent lighting behavior after power restoration.

15Key Features & Advantages

FeatureBenefit
16 Million ColorsProvides a wide range of RGB lighting colors for decorative and ambient lighting.
2700K to 6500KAllows supported lighting to be adjusted from warmer to cooler color temperatures.
Brightness ControlLets users adjust compatible RGB lighting brightness through the smart-home system.
ZigBee Automatic NetworkingSimplifies connection to a compatible ZigBee network.
Mesh NetworkingAllows compatible ZigBee devices to relay signals and help extend network coverage.
20A Maximum Load CurrentProvides substantial current capacity for compatible low-voltage RGB lighting applications.
DC12V / DC24VSupports two common low-voltage lighting supply levels.
Scene CreationAllows customized lighting scenes for different rooms, activities and moods.
Power-Off MemoryHelps maintain the desired lighting behavior after power interruptions.
AES-128 EncryptionAdds security to ZigBee wireless communication.
Compact DesignThe 70 × 70 × 23mm housing is suitable for compact smart-lighting installations.
Low Static ConsumptionStatic power consumption is specified at less than 0.1W.

16Recommended Applications

ApplicationRecommended Use
Living RoomControl decorative RGB lighting and create different ambient lighting scenes.
BedroomCreate warm, dimmed or customized lighting scenes.
TV AreaUse RGB lighting for entertainment and ambient illumination.
KitchenControl compatible decorative RGB lighting installations.
VillaIntegrate RGB lighting into smart villa automation systems.
Commercial SpacesControl compatible RGB decorative lighting in offices, retail spaces and hospitality areas.
Display AreasChange RGB colors and brightness for decorative or product-display lighting.
Smart HomeIntegrate compatible RGB lighting into ZigBee-based automation scenarios.

17What's Included

ItemQuantity / Details
ZigBee RGB Relay1 × unit
Screws2 × screws
Screw Caps2 × screw caps
After-Sales Service Card1 × card
Manual1 × user manual

18Important Product Notes

PointInformation
VoltageUse only compatible DC12V or DC24V power supplies.
Maximum CurrentMaximum specified load current is 20A.
Lighting CompatibilityDesigned for compatible RGB strip lights and RGB panel lights.
V+ SignalUse compatible V+ signal lighting according to the manufacturer's wiring requirements.
Hub / NetworkThe relay is a ZigBee device and requires a compatible ZigBee smart-home network or hub for smart network operation.
MoistureDo not install in moist environments such as bathrooms.
Power IsolationAlways switch off power before wiring or servicing the relay.
Load RatingDo not exceed the specified maximum current or use an incompatible lighting load.
Operating Temperature-20°C to 60°C.
Operating Humidity≤80%.
SecurityZigBee communication uses AES-128 encryption.
Color RangeSupports up to 16 million colors and 2700K to 6500K color-temperature control for compatible lighting.

?Frequently Asked Questions

What is a ZigBee RGB Relay?

The ZigBee RGB Relay is a smart lighting controller designed to control compatible RGB strip lights and RGB panel lights through a ZigBee smart-home network and HomeMate APP.

What is the model number of the ZigBee RGB Relay?

The manufacturer's model number is RL804CZB.

What voltage does the ZigBee RGB Relay support?

The relay supports DC12V and DC24V power supplies.

What is the maximum load current?

The specified maximum load current is 20A.

How many colors does the ZigBee RGB Relay support?

The relay supports up to 16 million colors for compatible RGB lighting.

Can I control brightness?

Yes. Compatible RGB lighting can be controlled for brightness through the supported smart-home system.

Can I adjust color temperature?

Yes. The specified color-temperature control range is 2700K to 6500K for compatible lighting.

Can it control RGB strip lights?

Yes. It is designed to control compatible RGB strip lights using the required V+ signal configuration.

Can it control RGB panel lights?

Yes. Compatible RGB panel lights are supported.

Does the relay use ZigBee?

Yes. It uses ZigBee wireless communication and the manufacturer specifies ZigBee HA as the protocol.

What frequency does the ZigBee RGB Relay use?

The specified wireless operating frequency is 2.4GHz.

Does it support ZigBee mesh networking?

Yes. The relay supports ZigBee mesh networking, allowing compatible intermediate devices to help relay network data.

Does it support automatic ZigBee networking?

Yes. ZigBee automatic networking is supported, simplifying network connection.

Does it support scene creation?

Yes. The relay supports smart lighting scenes for compatible lighting systems.

Does it have power-off memory?

Yes. The product supports a power-off memory function to help retain lighting behavior after power interruption.

What app is used with the ZigBee RGB Relay?

The product is designed to work with the compatible HomeMate APP for smart lighting control.

What is the size of the ZigBee RGB Relay?

The specified dimensions are approximately 70 × 70 × 23mm.

What is the wireless transmit power?

The specified wireless transmit power is 20dBm.

What is the wireless receiving sensitivity?

The specified wireless receiving sensitivity is ≥ -90dBm.

What encryption does the relay use?

The manufacturer specifies AES-128 encryption for the ZigBee communication.

How much static power does it consume?

The specified static power consumption is less than 0.1W.

What is the operating temperature?

The specified working temperature range is -20°C to 60°C.

What humidity level is supported?

The specified working humidity is up to 80%.

Can I install the ZigBee RGB Relay in a bathroom?

No. The manufacturer's documentation specifies that the product is designed for dry places and should not be used in moist environments such as bathrooms.

Does the relay need a ZigBee hub?

The relay requires a compatible ZigBee smart-home network or hub for ZigBee network operation. It is not intended to function as a standalone Wi-Fi lighting controller.

Is the ZigBee RGB Relay suitable for smart homes in Dubai?

Yes. It can be used for compatible low-voltage RGB lighting in smart homes, villas, entertainment areas and decorative lighting installations in Dubai, provided the installation meets the required voltage, wiring and dry-location requirements.

What is included in the package?

The package includes one ZigBee RGB Relay, two screws, two screw caps, one after-sales service card and one manual.

Customer reviews

0 Reviews Write a review

Write a review

No reviews yet.

Browse collection

Trending product

Cart

Your cart is currently empty

Continue shopping
Subtotal $74.00
