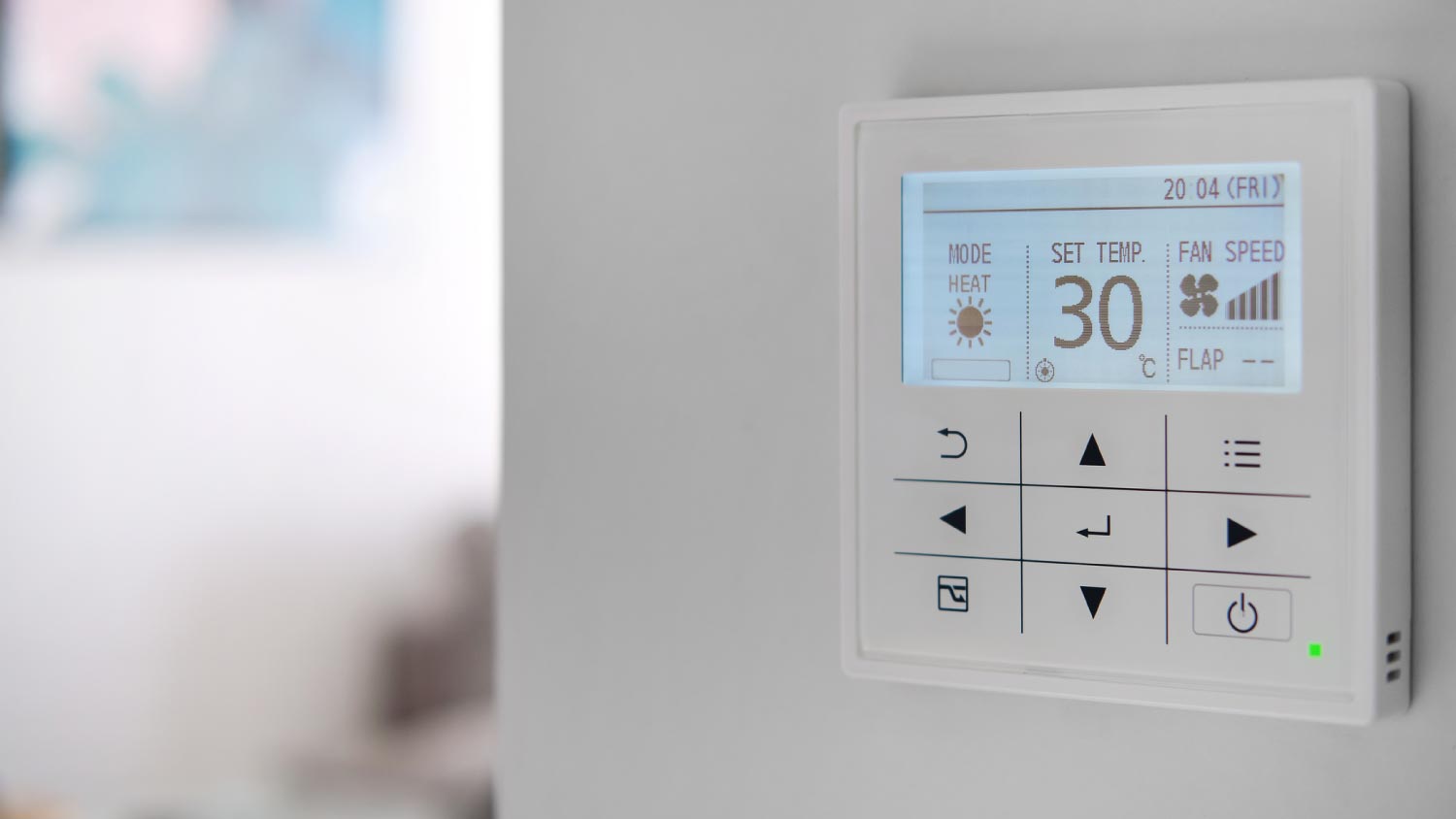

Central A/C Control Panel
All prices in AED. Free delivery over AED 250.00.
- UAE delivery1–3 working days
- WarrantyBrand warranty, ask us for terms
- InstallationAvailable in Dubai
- 14-day returnsUnused, in original packaging
Overview
1Basic Product Information
| Attribute | Details |
|---|---|
| Product Name | Central A/C Control Panel |
| Product Type | Smart central air-conditioning control panel |
| Brand | ORVIBO |
| Model | T10W1 |
| Product Code | TS31W5LZ is also referenced for the T10W1 platform in product documentation |
| SG Automations SKU | SG-1110029 |
| Category | Smart HVAC |
| Control Type | Central A/C and fan-coil system control |
| Primary Function | Smart control of compatible central air-conditioning systems |
| Control Method | Wall-mounted panel, smartphone app and compatible ORVIBO smart hub |
| Wireless Technology | ZigBee |
| HomeMate App | Supported when connected through a compatible ORVIBO ZigBee smart hub |
| Installation | Wall-mounted installation |
| Application | Homes, villas, offices, hotels, theatres, hospitals and other suitable central A/C environments |
2HVAC Control Functions
| Function | Details |
|---|---|
| Temperature Adjustment | Adjustable temperature range from 10°C to 30°C |
| Temperature Control | Electronic temperature adjustment through the panel and supported smart control ecosystem |
| Cooling Mode | Supported depending on the connected air-conditioning system |
| Heating Mode | Supported depending on the connected air-conditioning system |
| Ventilation Mode | Supported depending on the connected air-conditioning system |
| Fan-Coil Systems | Designed to support most existing central A/C systems of fan-coil type |
| Remote Control | Central A/C units can be controlled remotely through the supported HomeMate ecosystem |
| Scheduling | Users can set a time for the air conditioner to turn on before arriving home |
| Local Operation | Offline control from the physical panel is supported |
| Automatic Temperature Adjustment | Supports temperature adjustment according to configured control settings and connected system capabilities |
3Temperature & Control Precision
| Attribute | Specification |
|---|---|
| Temperature Range | 10°C to 30°C |
| Temperature Range Fahrenheit | Approximately 50°F to 86°F |
| Control Precision | ±1°C according to the official ORVIBO specification |
| Temperature Setting | Adjustable through the control panel and supported app ecosystem |
| Climate Control | Designed for central A/C temperature management |
| System Dependency | Available operating modes and functions depend on the connected A/C system |
4Connectivity & Wireless Communication
| Attribute | Details |
|---|---|
| Wireless Protocol | ZigBee HA |
| Wireless Frequency | 2.4GHz |
| Wireless Standard | IEEE 802.15.4 |
| Communication Distance | Less than 200ft under specified conditions |
| Smart Hub | Works with an ORVIBO ZigBee smart hub for smartphone and remote control functions |
| HomeMate App | Supported through a compatible ORVIBO ZigBee smart hub |
| Smartphone Control | Supported |
| Offline Control | Supported through the physical control panel |
| Wireless Communication | Designed for stable communication using ZigBee technology |
5Electrical Specifications
| Attribute | Specification |
|---|---|
| Input Voltage | 100-240VAC |
| Frequency | 50/60Hz |
| Inductive Load | 1A |
| Resistive Load | 2A |
| Power Supply | AC 100-240V, 50/60Hz |
| Power Box | Included |
| Electrical Installation | Must be carried out according to the connected A/C system requirements and applicable electrical safety practices |
6Physical Specifications
| Attribute | Specification |
|---|---|
| Product Size | 86 × 86 × 15mm |
| Width | 86mm |
| Height | 86mm |
| Depth | 15mm |
| Mounting Type | Wall-mounted |
| Mounting Plate | Included |
| Design | Compact wall-mounted central A/C control panel |
| Installation Hardware | Mounting plate and screws supplied |
7Smart Control & HomeMate App
| Feature | Details |
|---|---|
| HomeMate App | Supported when paired with a compatible ORVIBO ZigBee smart hub |
| Remote A/C Control | Allows supported central A/C units to be controlled remotely from a smartphone |
| Temperature Adjustment | Temperature can be adjusted remotely within the supported 10°C to 30°C range |
| Timer | Supports scheduled operation through the smart control ecosystem |
| Pre-Arrival Control | Users can schedule the A/C to turn on before returning home |
| Offline Operation | The physical control panel supports offline control |
| Smart Home Integration | Can operate as part of an ORVIBO smart home ecosystem through compatible ZigBee equipment |
8Security & Data Protection
| Feature | Details |
|---|---|
| Communication Encryption | 128-bit AES encryption |
| Security Standard | AES-encrypted ZigBee communication |
| Secure Communication | Designed to provide secure and reliable communication between supported smart devices |
| Anti-Interference | High-performance SCM and control logic are designed for stable operation and strong anti-interference performance |
| Privacy | Smartphone and cloud-related functions should be used according to applicable privacy requirements |
9A/C Compatibility & Applications
| Compatibility / Application | Details |
|---|---|
| Central A/C | Designed for compatible central air-conditioning systems |
| Fan-Coil Type | Supports most existing central A/C systems of fan-coil type |
| Cooling Systems | Supported where the connected A/C system provides cooling control |
| Heating Systems | Supported where the connected A/C system provides heating control |
| Ventilation Systems | Supported where the connected A/C system provides ventilation control |
| Residential Use | Suitable for homes, apartments and villas with compatible central A/C systems |
| Commercial Use | Suitable for offices and other compatible commercial environments |
| Hospitality | Published ORVIBO applications include hotels and theatres |
| Healthcare | Published ORVIBO applications include hospitals |
10Control Features & Advantages
| Feature | Benefit |
|---|---|
| Remote A/C Control | Allows supported central A/C units to be managed remotely through the smart home app. |
| Temperature Adjustment | Provides adjustable central A/C temperature control from 10°C to 30°C. |
| Scheduling | Allows users to schedule A/C operation according to daily routines. |
| Pre-Arrival Cooling | Users can schedule the A/C to operate before reaching home. |
| Offline Control | The wall panel can continue to provide local control without relying solely on smartphone operation. |
| ZigBee Connectivity | Provides wireless communication with compatible ORVIBO smart home equipment. |
| AES Encryption | Helps protect ZigBee communication with 128-bit AES encryption. |
| Compact Design | The 86 × 86 × 15mm form factor is designed for wall installation. |
| Mounting Plate | Included mounting hardware simplifies installation. |
| Low-Complexity Smart Upgrade | Can add smart control functions to compatible central A/C systems without requiring a completely new HVAC system. |
11Hardware & Internal Technology
| Component / Technology | Details |
|---|---|
| Controller | High-performance SCM based control architecture |
| Calculation Logic | Precise calculation logic for stable control operation |
| Anti-Interference | Designed for strong resistance to interference |
| Wireless Chip Technology | ZigBee wireless communication using IEEE 802.15.4 at 2.4GHz |
| Communication Security | 128-bit AES encryption |
| Power Box | Included with the product package |
| Mounting Plate | Included |
| Control Panel | 1 × Central A/C Control Panel |
12Installation & Placement
| Installation Point | Recommendation |
|---|---|
| Wall Location | Install on a suitable indoor wall in a convenient position for everyday control. |
| Mounting | Use the supplied mounting plate and appropriate screws. |
| Power | Provide the required AC power according to the published 100-240VAC, 50/60Hz specification. |
| A/C Connection | Connect to the compatible central A/C or fan-coil system according to its wiring requirements. |
| ZigBee Network | Install within suitable ZigBee communication range of the compatible ORVIBO smart hub. |
| Communication Range | Published communication distance is less than 200ft under specified conditions. |
| Heat Sources | Avoid unsuitable locations exposed to excessive heat or environmental conditions that may affect temperature measurement. |
| Accessibility | Position the panel where occupants can safely access and operate it. |
13Installation & Setup Instructions
- Check A/C compatibility:Confirm that the existing central A/C system is compatible with the control panel before installation.
- Switch off power:Disconnect the electrical supply to the relevant A/C control circuit before beginning installation.
- Choose the mounting position:Select a suitable indoor wall location that is convenient for everyday temperature control.
- Install the mounting plate:Secure the supplied mounting plate to the wall using suitable fixing hardware.
- Install the power box:Install and connect the supplied power box according to the applicable electrical and HVAC requirements.
- Connect the A/C system:Connect the panel to the compatible central A/C or fan-coil control circuit following the system wiring requirements.
- Check connections:Verify that all electrical and communication connections are secure and correctly insulated.
- Restore power:Restore power after confirming the installation is complete and safe.
- Power on the panel:Confirm that the control panel starts and responds correctly.
- Pair with ZigBee hub:Connect the panel to a compatible ORVIBO ZigBee smart hub where smartphone and remote functions are required.
- Configure HomeMate:Add the device through the supported HomeMate app and complete the pairing procedure.
- Set temperature:Configure the desired temperature within the supported 10°C to 30°C range.
- Test operating modes:Test cooling, heating or ventilation functions where supported by the connected A/C system.
- Configure schedules:Set timers or schedules for automatic A/C operation according to the user's requirements.
- Test remote control:Confirm that the central A/C can be controlled from the smartphone app when connected through the smart hub.
- Test offline operation:Verify that the physical panel provides local control as expected.
14What's Included
| Item | Quantity / Details |
|---|---|
| Central A/C Control Panel | 1 × ORVIBO Central A/C Control Panel |
| Power Box | 1 × Power Box |
| Mounting Plate | 1 × Mounting Plate |
| Screws | 2 × Screws |
| User Manual | 1 × User Manual |
| Warranty Card | 1 × Warranty Card |
15SG Automations Product Information
| Attribute | Details |
|---|---|
| Product Name | Central A/C Control Panel |
| Alternate Product Name | Central A/C Control Panel |
| Brand | ORVIBO |
| Product Type | Normal product listing |
| SKU | SG-1110029 |
| Product Code | SG-1110029 |
| Category | Smart HVAC |
| Availability | In stock on the SG Automations product page at the time of research |
| Listed Price | AED 475.00 |
| Previous Price | AED 550.00 |
| Product Rating | No customer reviews currently listed |
16Key Features & Advantages
| Feature | Benefit |
|---|---|
| Smart Central A/C Control | Provides intelligent control of compatible central air-conditioning systems. |
| Remote Smartphone Control | Allows supported A/C functions to be controlled remotely through the HomeMate ecosystem. |
| 10°C to 30°C Range | Provides a broad adjustable temperature range for central A/C control. |
| Cooling Mode | Supports cooling operation where available on the connected A/C system. |
| Heating Mode | Supports heating operation where available on the connected A/C system. |
| Ventilation Mode | Supports ventilation operation where available on the connected A/C system. |
| ZigBee HA | Uses ZigBee wireless communication for integration with compatible ORVIBO smart home equipment. |
| 2.4GHz Wireless | Operates using the IEEE 802.15.4 2.4GHz wireless standard. |
| 128-bit AES Encryption | Provides encrypted communication for improved security. |
| Offline Control | Allows local operation through the physical wall-mounted control panel. |
| Scheduling | Supports scheduled A/C operation for convenience and routine-based climate control. |
| Pre-Arrival Operation | Allows the A/C to be scheduled before occupants arrive home. |
| Fan-Coil Compatibility | Designed to support most existing central A/C systems of fan-coil type. |
| Compact 86 × 86mm Design | Provides a compact wall-mounted form factor. |
| 100-240VAC Input | Supports a wide AC input voltage range. |
| Easy Mounting | Includes a mounting plate and screws for installation. |
17Important Product Notes
| Point | Information |
|---|---|
| Brand | The product is listed by SG Automations under the ORVIBO brand. |
| Model | The official ORVIBO product page identifies the model as T10W1. |
| Product Code Reference | TS31W5LZ is referenced in some ORVIBO documentation for the T10W1 platform. |
| Wireless Protocol | The official specification lists ZigBee HA. |
| ZigBee Hub | A compatible ORVIBO ZigBee smart hub is required for smartphone and remote HomeMate control. |
| Offline Operation | The physical control panel supports offline operation. |
| Temperature | The supported adjustable temperature range is 10°C to 30°C. |
| Control Precision | The published specification lists ±1°C control precision. |
| Communication Distance | The published communication distance is less than 200ft under specified conditions. |
| Electrical Input | 100-240VAC, 50/60Hz. |
| Load Rating | 1A inductive load and 2A resistive load. |
| Compatibility | Supports most existing central A/C systems of fan-coil type according to ORVIBO. |
| Operating Modes | Cooling, heating and ventilation support depends on the connected A/C system. |
| Installation | The supplied mounting plate is designed to simplify wall installation. |
| Security | Communication uses 128-bit AES encryption. |
| Product Data | Actual product specifications can vary by production batch, software version and application conditions. Confirm current specifications before installation. |
| Electrical Safety | Professional installation is recommended where electrical or HVAC wiring work is required. |
| Dubai Use | Suitable for compatible residential and commercial central A/C applications in Dubai when installed according to system and electrical requirements. |
?Frequently Asked Questions
What is the Central A/C Control Panel?
The ORVIBO Central A/C Control Panel is a smart HVAC controller designed to manage compatible central air-conditioning systems and fan-coil type A/C systems.
What is the model number?
The official ORVIBO product specification identifies the Central A/C Control Panel model as T10W1.
What is the product code?
The SG Automations SKU and product code are SG-1110029. Some ORVIBO documentation also references TS31W5LZ for the T10W1 platform.
Does the Central A/C Control Panel support ZigBee?
Yes. It uses ZigBee HA wireless communication at 2.4GHz based on IEEE 802.15.4.
Does it require an ORVIBO ZigBee hub?
A compatible ORVIBO ZigBee smart hub is required for smartphone and remote control through the HomeMate app. The physical panel also supports offline control.
Can I control the central A/C from my phone?
Yes. When connected to a compatible ORVIBO ZigBee smart hub, the panel can be controlled through the HomeMate app.
What temperature range does it support?
The specified temperature adjustment range is 10°C to 30°C.
What is the temperature control precision?
The published ORVIBO specification lists control precision of ±1°C.
Does it support cooling?
Yes. Cooling mode is supported where the connected central A/C system provides cooling control.
Does it support heating?
Yes. Heating mode is supported where the connected A/C system provides heating control.
Does it support ventilation?
Yes. Ventilation mode is supported where the connected A/C system provides the relevant function.
What type of A/C systems does it support?
ORVIBO states that the panel supports most existing central A/C systems of fan-coil type. Compatibility should be confirmed with the actual HVAC system before installation.
Can I schedule the air conditioner?
Yes. The smart control ecosystem supports scheduling, including setting the A/C to turn on before arriving home.
Can the panel work without the smartphone app?
Yes. The official product information states that offline control is supported through the physical control panel.
What wireless frequency does it use?
The panel uses 2.4GHz wireless communication based on IEEE 802.15.4.
What is the ZigBee communication distance?
The published specification lists a communication distance of less than 200ft under specified conditions.
What is the input voltage?
The panel supports 100-240VAC input at 50/60Hz.
What is the current load rating?
The published specification lists 1A for inductive loads and 2A for resistive loads.
What are the dimensions?
The Central A/C Control Panel measures approximately 86 × 86 × 15mm.
Is a mounting plate included?
Yes. A mounting plate is included in the product package.
Are screws included?
Yes. The published package contents include two screws.
Does the package include a power box?
Yes. One power box is included according to the published ORVIBO package contents.
Is a user manual included?
Yes. One user manual is included.
Is a warranty card included?
The published ORVIBO package contents list one warranty card.
How secure is the wireless communication?
The product uses 128-bit AES communication encryption for secure and reliable communication.
Is the Central A/C Control Panel suitable for villas?
Yes. It can be suitable for villas and homes with compatible central A/C or fan-coil systems, provided the existing HVAC wiring and system requirements are compatible.
Is it suitable for offices and commercial buildings?
Yes. ORVIBO lists applications including offices, hotels, theatres and hospitals, subject to system compatibility.
Can it help automate central A/C operation?
Yes. When connected to the ORVIBO smart home ecosystem, it can provide smartphone control, scheduling and remote temperature adjustment for compatible A/C systems.
Can it be installed in Dubai?
Yes. It can be used in Dubai with compatible central A/C systems and proper professional installation where electrical or HVAC wiring is required.
Does the product require Wi-Fi?
The panel itself communicates using ZigBee rather than directly using Wi-Fi. A compatible ORVIBO ZigBee smart hub is required for smartphone and remote HomeMate functions.
Does the panel replace the existing A/C controller?
It is designed as a central A/C control panel for compatible systems. Whether it can directly replace an existing controller depends on the A/C system's wiring and control interface.
Should professional installation be used?
Professional installation is recommended when electrical wiring or HVAC control wiring is required. Compatibility and wiring should be checked before installation.
Product details
Central A/C Control Panel in Dubai
Regulate your internal temperature easily with the Central A/C Control Panel from SG Automations Dubai.
A clever HVAC control tool like this enables you to handle numerous zones, create schedules, and check energy consumption right from a mobile app.
Thanks to artificial intelligence-driven automation and effortless connection with Google Nest or any other smart system, you have accurate climate control made just for the tough weather in Dubai.
Whether the place is a house or a business, this unit is great for keeping the best level of performance, comfort, and money saving.
Why Buy from SG Automations Dubai
We at SG Automations are the leading smart air conditioning control system company in Dubai and the UAE.
By our experts who do installation, configuration, and maintenance, you get to enjoy the perfect climate with the help of advanced automation technology.
Specifications
- Brand
- Orvibo
- Category
- Smart HVAC
- SKU
- SG-1110029
- Condition
- New
- Colours
- White, Black
- Availability
- In stock
- Delivery
- UAE-wide, 1–3 working days
Customer reviews
Frequently asked questions
Do you deliver across the UAE?
Yes. We deliver across Dubai and the rest of the UAE, usually within 1–3 working days. Delivery is free on orders over AED 250.00.
Is installation available in Dubai?
Yes. Our team can install this product at your home or office in Dubai. Message us on WhatsApp with your location and we will arrange a visit.
What warranty does this product have?
Warranty terms depend on the brand. Message us for the exact UAE warranty on this product before you order.
What is your return policy?
Unused items in original packaging can be returned within 14 days for a refund or store credit. Faulty or damaged items are handled under warranty. Refunds go back to the original payment method.
